ASR X-04A/ 07A

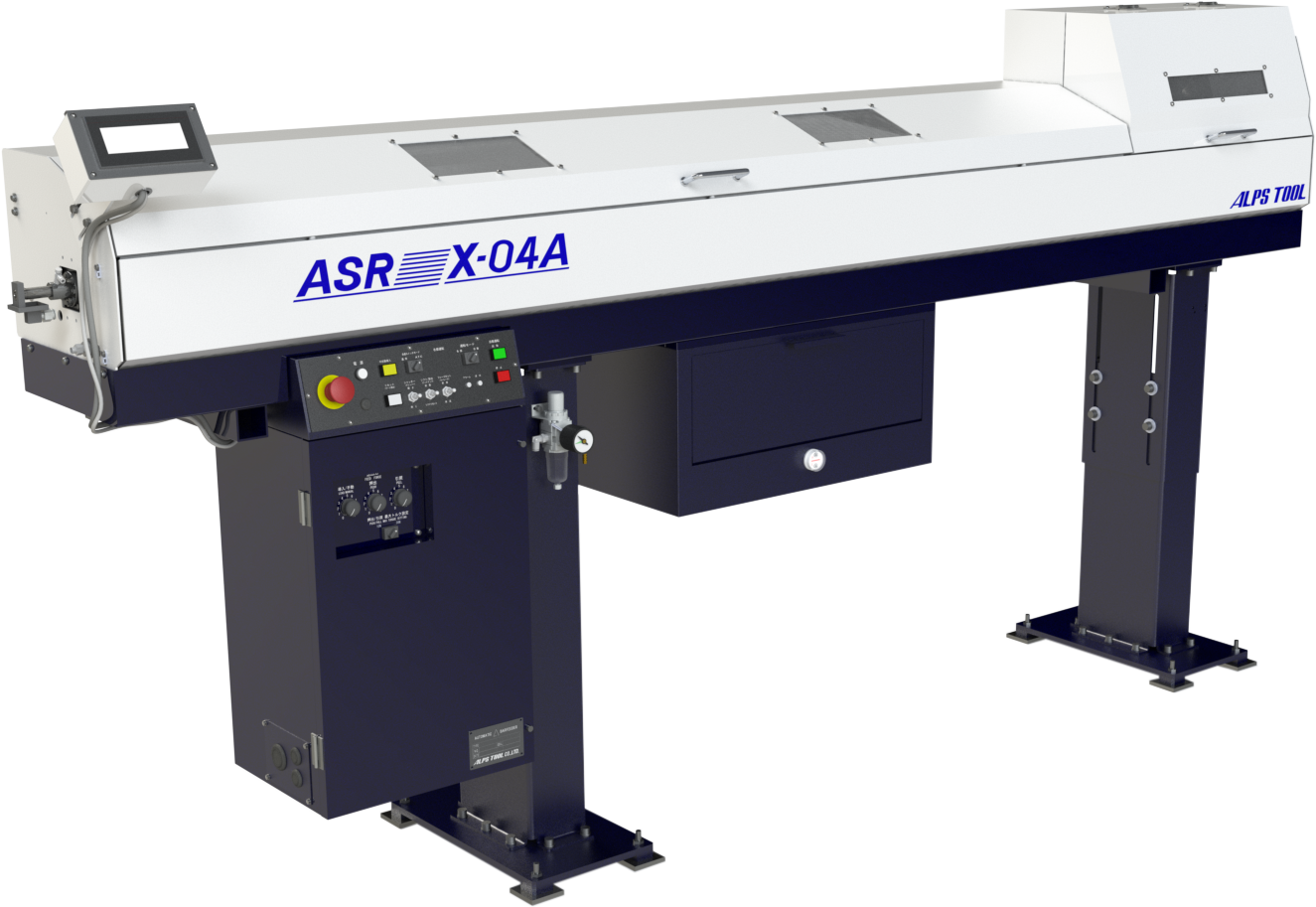

ASR X-04A/ 07A is the one for very small diameter materials. This type is equipped with our original A.T.C system (Automatic Top Catch system) (PAT.P) as standard. Following ability of very small diameter materials has been improved owing to servo motor. This type realizes unmanned continuous machining for 48 hours.
Features
- The rack has capacity of 500 pcs of φ1mm material.
- There is no need to align very small diameter materials since materials are stocked in bundled forms.
- Adopting precise synchro device and the quantitative control achieved by servo motor reduce stress on materials and prevent whirling while machining. Also weight and torque adjustment is unnecessary.
- This is short type feeder equipped with new shift device (PAT.P) and it is possible to save and utilize floor space.
- This is the fully covered genuine bar feeder for very small diameter materials.
| X-04A | X-07A | |
|---|---|---|
| Bar diameter (mm) | φ0.7～φ4.0mm | φ1.0～φ7.0mm |
| Rack capacity | φ1.0→500pcs φ4.0→50pcs | φ1.0→500pcs φ4.0→50pcs |
| Bar length | 2.0m(1,000～2,1000mm) 2.5m(1,000～2,600mm) 3.0m(1,000～3,100mm) |
|
| Remnant | Retract(Remnant length 60～250mm) | |
| Advance pressure | Forward 300mm/sec Backward 400mm/sec | |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 100L/min(ANR) | |
| Oil used | 10L Recommended oil viscosity(VG10:ISOstandard) | |
| Power source | AC200V 50/60Hz 500VA | |
| Weight | 2.0m→320kg 2.5m→350kg 3.0m→380kg | |
*Specification may be changed without notice for improvement.
AZ12X
AZ12X is improved version of ASR X-2Z which was made for small diameter CNC automatic lathes. This type is newly designed and better in quality and efficiency.
Features
- Torque and speed are precisely controlled by servo motor.
- This type has better performance and durability owing to linear slide.
- This type can follow the movement of high speed spindle on lathes owing to new synchro device.
- New support prevents noise and vibration.
- this type is equipped with energy-saving oil pomp and remnant can be extracted from both sides.
- Data setting and maintenance can be easily done with the touch panel.
| Bar diameter (mm) | φ2.0～φ11.0mm(φ13set shaving) |
|---|---|
| Rack capacity | φ2.0→90pcs φ12.0→13pcs |
| Bar length | 2.5m(1,000～2,530mm) 3.0m(1,000～3,030mm) |
| Remnant | Retract(Remnant length 60～300mm) |
| Advance pressure | Forward 600mm/sec Backward 1,600mm/sec |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 100L/min(ANR) |
| Oil used | 20L Recommended oil viscosity(VG32:ISOstandard) |
| Power source | AC200V 50/60Hz 500VA |
| Weight | 2.5m→400kg 3.0m→420kg |
*Specification may be changed without notice for improvement.
ASR X-20ZⅡ
ASR X-20ZⅡ is cutting edge oil type bar feeder for small and medium diameter automatic lathe. This is improved version of ASR X-16Z and the upper cover can be opened and closed from both sides same as RX type. This type occupy 10% less floor than former model and realize easier and stabler operation.
Features
- The upper cover can be opened and closed from both sides and it allows you to replenish material on the rack from both sides.
- The touch panel makes programming and maintenance easier.
- New durable synchro device (OP) can be equipped.
- This type has shorter structure and occupy 10% less floor. Rack capacity has been increased by 10%.
| Bar diameter (mm) | type12：φ2.0～φ12.0mm type16：φ4.0～φ16.0mm type20：φ4.0～φ20.0mm |
|---|---|
| Rack capacity | φ4.0→48pcs φ16.0→12pcs |
| Bar length | 2.5m(1,000～2,545mm) 3.0m(1,000～3,045mm) 4.0m(1,000～4,045mm) |
| Remnant | Retract(Remnant length 55～400mm) |
| Advance pressure | Forward 800mm/sec Backward 1,600mm/sec |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 100L/min(ANR) |
| Oil used | 20L Recommended oil viscosity(VG32:ISOstandard) |
| Power source | AC200V 50/60Hz 1.5kVA |
| Weight | 2.5m→360kg 3.0m→400kg 4.0m→480kg |
*Specification may be changed without notice for improvement.
ASR RX32Ev
ASR RX32Ev is the latest model for medium and large diameter CNC lathes. This model is designed to realize higher rotation performance and quieter factory environment based on our original technology. This type adopts multi-hybrid support that improves a fluid characteristic of oil and vibration control. Furthermore, a steady rest unit which realizes less noise and vibration is equipped on the top end as standard. This model is the high performance oil type bar feeder that achieves certain stability at high speed and safety.
Features
- Set-up change is finished only by swapping finger chucks and adjustment.
- Double-feed rods (PAT) improve vibration control in the main spindle.
- Accurate remnant discharge (PAT.P) realizes stable continuous operation.
- servo motor realizes stable feeding control.
- Surplus materials can be automatically placed on the rack after the machining.
- The upper cover can be opened and closed from both sides and set-up change and maintenance can be done easier.
| Bar diameter (mm) | type32：φ8.0～φ27.0mm(～φ32mm) Hex10.0～Hex23.0mm type34：φ8.0～φ29.0mm(～φ34mm) Hex10.0～Hex24.0mm Small diameter option type20：φ5.0～φ16.0mm |
|---|---|
| Rack capacity | φ10.0→30pcs φ32.0→9pcs φ34.0→8pcs |
| Bar length | 2.5m(1,500～2,500mm) 3.0m(2,000～3,000mm) 4.0m(3,000～4,000mm) |
| Remnant | Retract(Remnant length 70～500mm) |
| Advance pressure | Forward 600mm/sec Backward 1,000mm/sec |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 230L/min(ANR) |
| Oil used | Recommended oil viscosity(VG32～VG68:ISOstandard) 2.5m→55L 3.0m→60L 4.0m→70L |
| Power source | AC200V 50/60Hz 2.0kVA |
| Weight | 2.5m→1,000kg 3.0m→1,050kg 4.0m→1,200kg |
*Specification may be changed without notice for improvement.
ASR RX45Ev/ RX51Ev
ASR RX45Ev/ RX51Ev are the latest model for medium and large diameter CNC lathes. This model is designed to realize higher rotation performance and quieter factory environment based on our original technology. This type adopts multi-hybrid support that improves a fluid characteristic of oil and vibration control. Furthermore, a steady rest unit which realizes less noise and vibration is equipped on the top end as standard. This model is the high performance oil type bar feeder that achieves certain stability at high speed and safety.
Features
- Set-up change is finished only by swapping finger chucks and adjustment.
- Double-feed rods (PAT) improve vibration control in the main spindle.
- Accurate remnant discharge (PAT.P) realizes stable continuous operation.
- Servo motor realizes stable feeding control.
- Surplus materials can be automatically placed on the rack after the machining.
- The upper cover can be opened and closed from both sides and set-up change and maintenance can be done easier.
| Bar diameter (mm) | type42：φ8.0～φ37.0mm(～φ42mm) Hex10.0～Hex30.0mm type45：φ8.0～φ40.0mm(～φ45mm) Hex10.0～Hex35.0mm type51：φ8.0～φ45.0mm(～φ51mm) Hex10.0～Hex38.0mm |
Rack capacity | φ10.0→30pcs φ45.0→7pcs φ51.0→6pcs |
|---|---|---|
| Bar length | 2.5m(1,500～2,500mm) 3.0m(2,000～3,000mm) 4.0m(3,000～4,000mm) |
|
| Remnant | Retract(Remnant length 70～500mm) | |
| Advance pressure | Forward 350mm/sec Backward 700mm/sec | |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 230L/min(ANR) | |
| Oil used | Recommended oil viscosity(VG32～VG68:ISOstandard) 2.5m→55L 3.0m→60L 4.0m→70L |
|
| Power source | AC200V 50/60Hz 2.0kVA | |
| Weight | 2.5m→1,050kg 3.0m→1,100kg 4.0m→1,250kg | |
*Specification may be changed without notice for improvement.
ASR X-65Ev
ASR X-65EV is the latest magazine oil type bar feeder designed for medium and large diameter materials based on our accumulated techment on fluid characteristic of oil, high rigid bush type rotation control device, and thnology and achievements. New hydrodynamic support which achieves further improvee middle support device help machining of medium and large material.
Features
- This model is suitable for wide range of bar diameter from φ8 to φ60 (65) mm and hexagonal bar materials from H10 to H46 mm.
- The upper cover can be opened and closed from both sides.
- Servo motor realizes further improved feeding performance.
- Set up change is finished only by swapping finger chucks and adjustment.
| Bar diameter (mm) | φ8.0～φ60.0mm(～φ65mm) Hex10.0～Hex46.0mm |
|---|---|
| Rack capacity | φ10.0→30pcs φ45.0→7pcs φ65.0→4pcs |
| Bar length | 2.5m(2,000～2,500mm) 3.0m(2,000～3,000mm) 4.0m(3,000～4,000mm) |
| Remnant | Retract(Remnant length 80～500mm) |
| Advance pressure | Forward 350mm/sec Backward 700mm/sec |
| Air pressure | 0.5Mpa (5～7kgf/㎠) 230L/min(ANR) |
| Oil used | Recommended oil viscosity(VG32～VG68:ISOstandard) 2.5m→65L 3.0m→70L 4.0m→90L |
| Power source | AC200V 50/60Hz 1.5kVA |
| Weight | 2.5m→1,250kg 3.0m→1,300kg 4.0m→1,700kg |
*Specification may be changed without notice for improvement.
